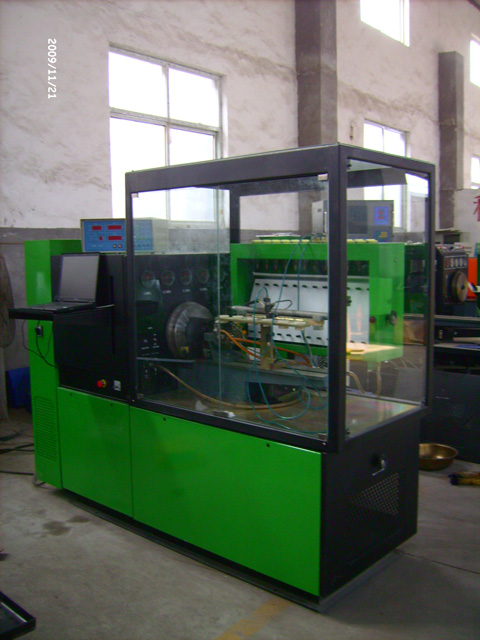

1.testing common rail system such as BOSCH, DELPHI, DENSO those used often pumps model.

2. it can finish most of the testing and maintenance for common rial system, with good reliability and good system stability.

3.testing the oil supply quantity and oil supply pressure of common rail pump

4.testing the oil supply quantity and opening pressure of common rail injector

5.testing the uniformity of the common rail injector

6.testing the min and max oil supplu quantity of the common rail injector

7.testing the return oil quantity of injector, pressure-control

8.preset different kinds of parameter, start, idel, medium,full gas and so on.

9.software control realtime, windows operation system,display with LCD

10. it can test 6 pcs of common rail injectors in one time

1. Volume of oil tank:60L;

2. Temperature stabilization:40±2⁰C:

3. Test oil filtering unit:5μ；

4. D.C.Supply：12v/24v；

5. Feed pressure: low:0~0.4Mpa.high:0~4Mpa;

6. Air pressure:0~0.3Mpa;

7. 3-phase power supply: 380V/50Hz or on request;

8. Flywheel inertia^’s moment: 0.8 Kg.M²;

9.Center height: 125 mm;

10.Output power: 15KW or on request;

11. Overall dimensions(mm): 2300×1100×1880；

12.Net weight (KG):1300.

13 .rail pressure test: 0-1600 Bar

14.rotation speed adjustment range: 0-3500 RPM
