dynamic balancing machine series

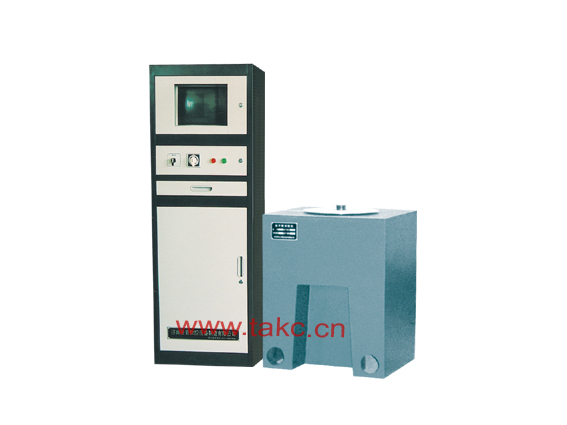

Vertical single dynamic balancing machine YLD-5
The series adopts rigid support to support the workpiece, dedicated to a balanced ratio of diameter and height of about 7 / 1 discoid workpiece. For example, brake disc, flywheel, clutch assembly, wheel, discoid knife cutting, pulley, refiner grinding and so on.
|
Parameter
model |
Vertical single dynamic balancing machine | |||
|
workpiece weight range（kg） |
maximum
turningdiameter（mm） |
Balancing speed（rpm） |
Drive power（kw） | |
|
YLD-5 |
0.1-5 |
Φ500 |
300-1500 |
0.45 |
|
YLD -16 |
0.5-16 |
Φ500 |
300-1500 |
0.45 |
|
YLD -42 |
3-42 |
Φ800 |
300-1500 |
1.1 |
|
YLD -100 |
5-100 |
Φ800 |
300-1500 |
4 |
|
YLD -200 |
10-200 |
Φ800 |
180-900 |
5.5 |
|
YLD -300 |
18-300 |
Φ800 |
180-900 |
5.5 |
 |
|
 |
|
|
