PRODUCT

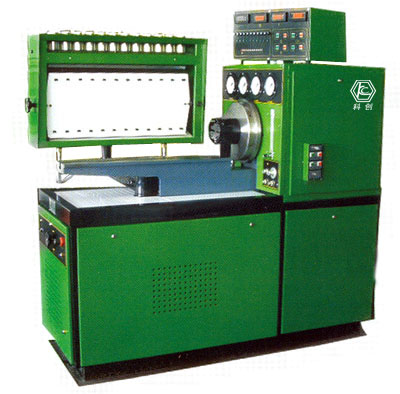

EPT-B
|
Funtion |
Parameter |
Characteristic |
| 1、Measurement of the delivery at various rotation speeds 2、Checking of each line's injection timing with static 3、Checking of the mechanical speed governors 4、Checking of the electromagnetic vale of distributor pump 5、Checking of the pneumatic speed governors 6、Checking of the pressure compensators(LDA) 7、Measurement of the reflux delivery of distributor pump 8、Measurement of the distributor pump's body internal pressure 9、Checking of sealing of the in-line injection pump body |
1、Range of rotational speed adjusted:0 ～ 4000rpm 2、Double series of graduates: 45cc, 150cc 3、Volume of oil tank:60L 4、Temperature stabllization:40 ± 2 ℃ 5、Test oil-filtering unit:5u 6、DC.supply:12V/24V 7、Feed pressure:high:0 8、Air pressure:positive3mpa;negative: -0. 03 ～ 0mpa 9、3-phase electrical supplies:380V/50HZ(or on request) 10、Flywheel inertia's moment:0.8kg ㎡ Interaxe height:125mm 11、Output power:5.5kw,7.5kw,11kw,15kw(or on request) 12、Overall dimensions:1600×960×1750(mm) Net weight:1300kg |
1、Changing frequency changing rotation speed continuously 2、Low fall of rotational speed and high output torque 3、High precision 4、The function of over voltage and overload protecting 5、Ten rotation presetting 6、Constant temperature controlling 7、Low noise 8、Arbitrary side of the two work sides of the test stand 9、Digit-display rotation speed,count ,temperature and air pressure |
 |
|
 |
|
|
