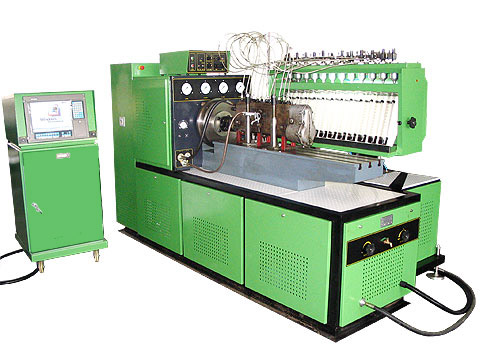

EPT-MTU
|
Characteristics |
Functions |
Tecnnical Paramenters |
| ◎Independent removable operating flat roof system; ◎Ultra large working table with three "T"type slots; ◎Independent removable oil collecting system; ◎Independent forced lubrication system; ◎Rotation speed,count,temperature,rack travel,air pressure and advance angle are measured and controlled by compuers in real time,then displayed by 15"LCD; ◎The data of the pumps can be saved,modified and obtain pump databass; ◎It is very easy to find the data of the pumps in pumps database; ◎Built-in air resource; ◎All data can be made into reports and printed; ◎Changing frequency changing rotation speed,small fall of rotation speed and large output torque; ◎High precision,high efficiency and energy saving; ◎Having the function of oil level display and alarm; ◎Automatically generating and displaying speed character-istics curve. |
◎Measurement of each cylinder`s delivery at various rotation speeds; ◎Checking of each cylinder`s injection time with static state; ◎Checking of the mechanical speed governors; ◎Checking of the electricmagnetic valve of distributor pumps; ◎Checking of the pneumatic speed governors` positive pressure performance; ◎Checking of the pressure compensators (with LDA); ◎Measurement of the reflux delivery of distributor pumps; ◎Measurement of the internal pressure of the distrbu-tor pumpa body; ◎Checking of the pneumatic speed governors` vacuum performance; ◎Measurement of rack travel; ◎Checkong of the sealing of fuel injection pumnp body; ◎Measurement of advance angle. |
◎Graduates:600/800ML;150/45ML; ◎Oil tank volume:100L； ◎Auto-controlled constant oil temperature:40±2℃； ◎Test oil filtering unit:5μ； ◎D.C.Supply:12V.24V; ◎Feed pressure:low:0~0.4Mpa,high:0~1.6Mpa; ◎Pump body inernal pressure:0~0.16Mpa,0~1.6Mpa ◎Display air pressure,range:positive:0~0.3Mpa,negative:-0.03~0Mpa; ◎Speed presetting range:0~4000RPM; ◎Rack travel range:0~25MM; ◎Center height:125MM; ◎Flywheel inertia`s moment:0.8KG.M2; ◎Output power:18.5KW、22KW、30KW; ◎Overall size(MM):2900×840×1700； ◎Net weight:2200KG. |
 |
|
 |
|
|
