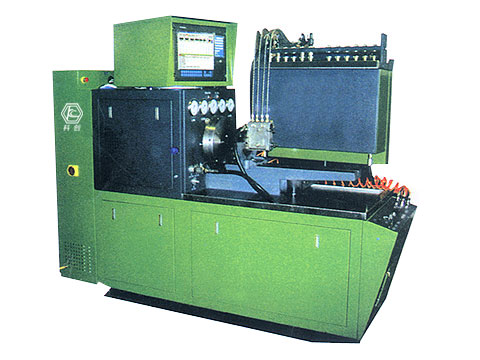

我公司最新研发成功的EPT-CMC815型量油数显试验台,技术成熟,测量精确,可靠性强,批量投入生产,代表了当今世界先进水平。
该产品具有以下特点:
EPT-CMC815 oil quantity measurement digital display test stand,successfully developed in October,2005,with mature technique,high measurement precision and high reliability.
up to now,it is domestic only test stand approved acceptance by diesel fuel injection pump profes-sionals technical center.It presents the following features:
1、油量计量通过台湾研华工控机实时测量并且屏幕显示;
Oil quantity is measured and displayed in real time by Taiwan ADVANTECH Industrial Controlled Computer;
2、Windows操作系统;
Windows operating system;
3、转速、计数、温度、齿条行程、气压、提前角、供油间隔角等均由台湾研华工控机实时测量控制并通过15"液晶显示屏显示;
Rotation speed,count,temperature,rack travel,air pressure,advance angle and oil delivery interval angle are measured and controlled by Taiwan ADVAVTECH industrial Controlled Computer in real time,then displayed by 15"LCD;
4、具有油位显示和滤清器堵塞报警功能;
Having the function of oil level indication and filter blocking alarm;
5、可以自动生成并显示调速特性曲线;
Automatically generating and displaying speed characteristics curve;
6、可以自动生成并显示供油特性曲线;
Automatically generating and displaying oil delivery characteristics curve;
7、可以自动生成并显示提前器特性曲线;
Automatically generating and displaying advance device characteristics curve;
8、外置独立式高效制冷系统;
Built-out independent high efficiency cooling system.
